Product Detail
Basic Info
Customized:Customized
Material:Diamond
Use:Well Drilling
Name:10mm, 12mm, 14mm, 16mm, 18mm Spherical Diamond Pd
Diameter:10mm, 12mm, 14mm, 16mm, 18mm
Size:1014, 1214, 1418, 1420, 1620, 1624, 1827
Height:10mm, 12mm, 14mm, 18mm, 20mm, 24mm or customized
Trademark:Feiray or make with your label
Specification:ISO9001
Origin:Shaanxi
HS Code:82079010
 |  |
Product Description

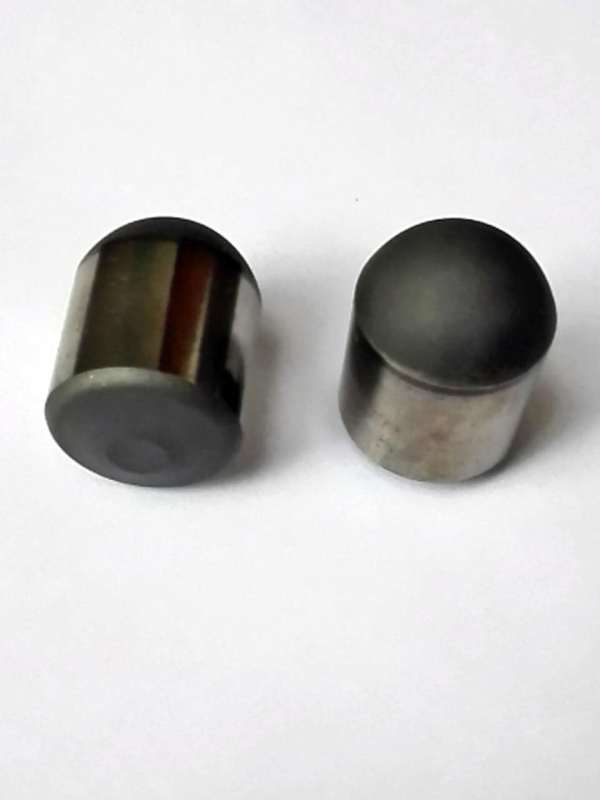

10mm, 12mm, 14mm, 16mm , 18mm spherical diamond pdc cutters
| Product: PCD button for drill bit, PDC cutter, PDC inserts, PDC button |
| Material: Diamond with Tungsten Carbide |
| Type: 0808, 1304, 1308, 1313, 1613, 1616, 1916, 1919 |
| Application 1: PDC cutter for mining, coal mining, oilfield drill bit |
| Application 2: PDC cutter for chain saw cutting tools |
| Application 3: PDC cutter for concrete cutting pad |
| Certification: ISO 9001 |
| Packing: Carton box with foam box |
| MOQ: 100 pieces |
| Delivery Time:1-5 Days for sample, 1-15 days for batch products |
| PDC-CUTTER Specifications | |||||||
| Product Code | Size | D | H | DIAMOND HEIGHT(T) | D | H | DIAMOND HEIGHT(T) |
| (inch) | (inch) | (inch) | (mm) | (mm) | (mm) | ||
| 0808 | 5/16" | 0.3150 | 0.3150 | 0.0800 | 8.00 | 8.00 | 1.50 |
| 0810 | 5/16" | 0.3150 | 0.3937 | 0.0800 | 8.00 | 10.00 | 1.50 |
| 1008 | 13/32" | 0.4060 | 0.3150 | 0.0700 | 10.31 | 8.00 | 1.50 |
| 1308 | 1/2" | 0.5290 | 0.3170 | 0.0800 | 13.44 | 8.05 | 1.50 |
| 1313 | 1/2" | 0.5290 | 0.5200 | 0.0800 | 13.44 | 13.21 | 1.80 |
| 1608 | 5/8" | 0.6250 | 0.3170 | 0.0700 | 15.88 | 8.05 | 2.00 |
| 1613 | 5/8" | 0.6250 | 0.5200 | 0.0700 | 15.88 | 13.21 | 2.00 |
| 1908 | 3/4" | 0.7500 | 0.3170 | 0.0600 | 19.05 | 8.05 | 2.00 |
| 1913 | 3/4" | 0.7500 | 0.5200 | 0.0600 | 19.05 | 13.21 | 2.00 |
| 1916 | 3/4" | 0.7500 | 0.6250 | 0.0600 | 19.05 | 15.88 | 2.50 |
| 1919 | 3/4" | 0.7500 | 0.7500 | 0.0600 | 19.05 | 19.05 | 2.50 |
Polycrystalline Diamond Compact (PDC),is a super hard composite material synthesized a layer of selected diamond particals and bonded to a tungsten carbide substrate. Combining the properties of both super hardness and abrasion resistance of diamond with outstanding strength and toughness of tungsten carbide, PDC has been widely used in mechanical industry, oil well drilling, geological prospecting drilling and coal mine drilling.

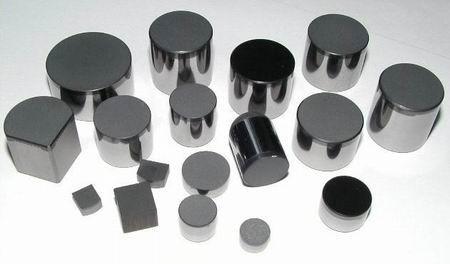

The standard shape is cylinder, we can also supply the PDC cutters in all kinds of shapes(square,rectangle,triangle,sector,etc.)with diameter from 4 to 25mm,PDC layer from 0.3 to 3mm,the total height from 1.0 to 25mm. Other size and shapes could be made as your requirement.
