Product Description
Product name
| 56, 65, 76mm PDC Sintered Bit with Flat Head
|
Drill type
| Matrix body PDC drill bits
|
| Trademark:Tydrillbits | Origin:Shaan xi,China |
| Diameter | 46mm to 153mm |
Our advantage
| Customized service and mature manufacturing experience
|
| Certification | ISO9001:2000 |
| HS Code | 82071910 |
| Production Capacity | 600PCS/Week
|
| Package | Carton or According to The Customer |
About products

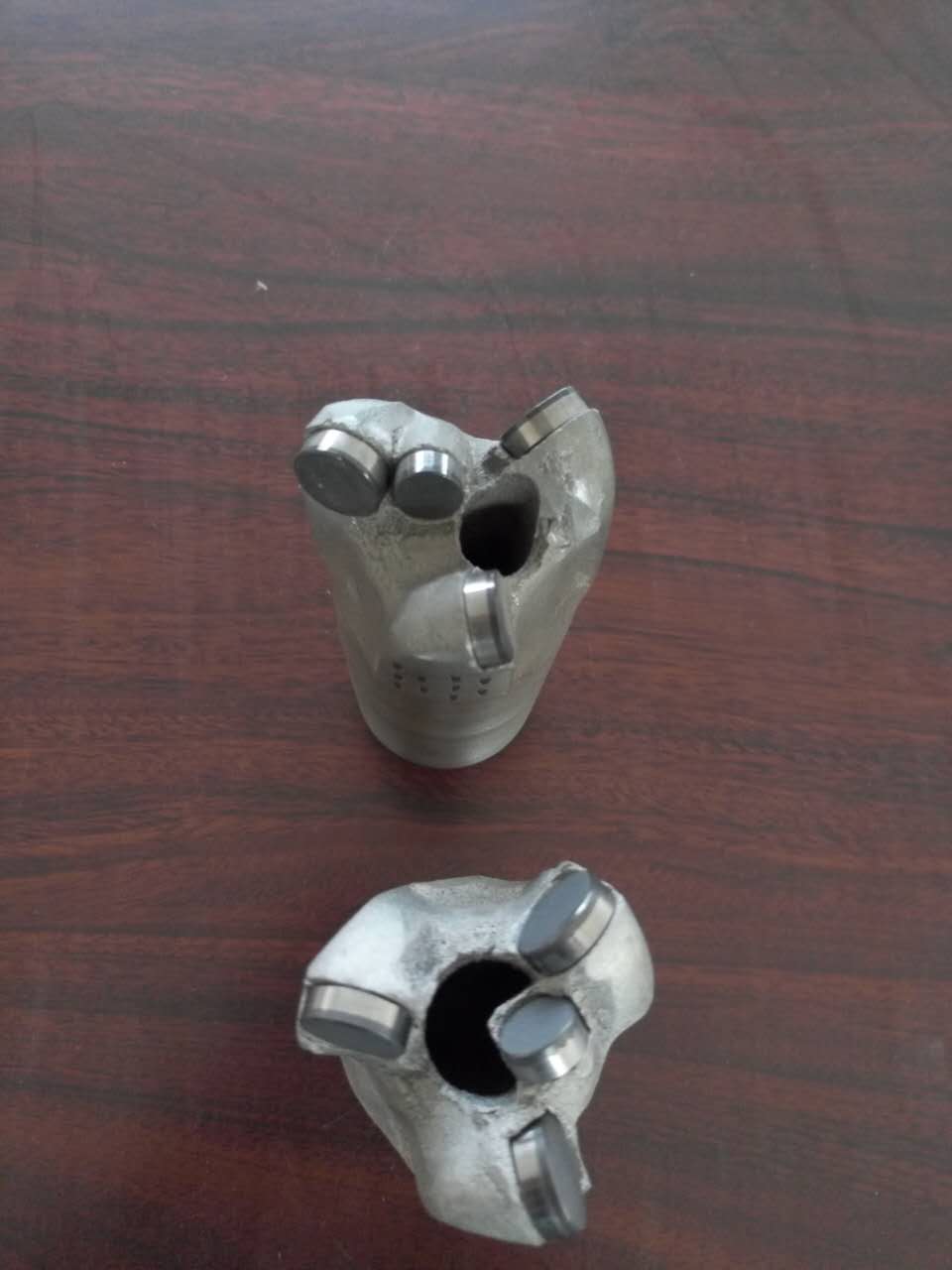

Matrix Body PDC bit/Tungsten carbide sintered matrix PDC bit is made by with PDC cutter brazed to Matrix Body. With higher strength of tungsten carbide as the body, the bit has good anti-erosive and the increased the toughness. With premium PDC cutters, the bit has enhanced reliability and drilling efficiency.
ADVANTAGES
1. ISO9001: 2000 certificated
2. Efficient assembly, high abrasion resistance, impact toughness.
Feature
1. Increased wear resistance and toughness.
2. Boosts production rates by reducing change over.
3. Fast penetrating two wing drill bit for wet drilling with centre flushing.
4. PDC drill bits feature cutters made of polycrystalline diamond layer sintered with tungsten carbide subtsrate.
Dimater available: 46, 56, 65, 75, 89, 113, 133, 153mm.
|
Diameter |
Thread |
|
mm |
|
|
46 |
AW |
|
56 |
AW |
|
65 |
BW |
|
75 |
BW NW |
|
94 |
2 3/8" API REG |
|
96 |
2 3/8" API REG |
|
113 |
2 3/8" API REG |
