Product Detail
Basic Info
Type:Cutter
Material:Polycrystalline Diamond
Work Type:Cut Off
Size:0808, 1308, 1608, 1908, 1613, 1913
Available:Oil Drilling Bit
Trademark:Tydrillbits
Specification:International Standard
Origin:China
HS Code:84631019
Product Description

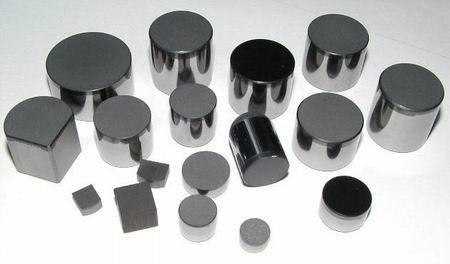

Oil bit inserts, oil drilling bit cutter, PDC cutter, PDC Bit Inserts,
Polycrystalline Diamond Composite is manufactured using top quality synthetic diamond grit, sintered together by way of extremely high temperature and pressure to create a polycrystalline diamond (PCD) layer.
PDC is designed for oil-well bits and mining bits, which are suitable for use in soft to medium hard rock formations.

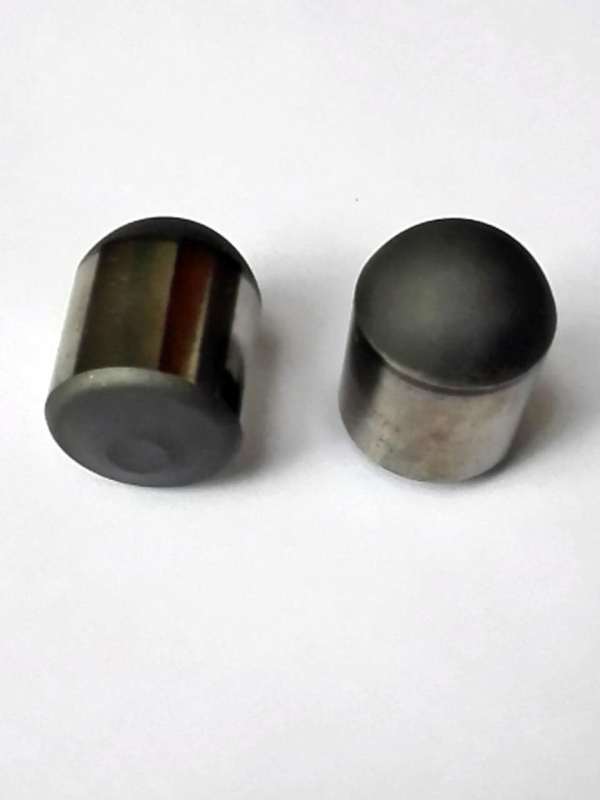

PDC Rock Cutter for Oil Well Drilling Bits.
| PDC cutters specifications | |||||||
Product Code | Size | D | H | Diamond Height(T) | D | H | Diamond Height(T) |
(in) | (in) | (in) | (mm) | (mm) | (mm) | ||
| 0505 | 3/16" | 0.1970 | 0.1970 | 0.0800 | 5.00 | 5.00 | 2.03 |
| 0804 | 5/16" | 0.3150 | 0.1575 | 0.0800 | 8.00 | 4.00 | 2.03 |
| 0808 | 5/16" | 0.3150 | 0.3150 | 0.0800 | 8.00 | 8.00 | 2.03 |
| 0810 | 5/16" | 0.3150 | 0.3937 | 0.0800 | 8.00 | 10.00 | 2.03 |
| 1008 | 13/32" | 0.4060 | 0.3150 | 0.0700 | 10.31 | 8.00 | 1.78 |
| 1308 | 1/2" | 0.5290 | 0.3170 | 0.0800 | 13.44 | 8.05 | 2.03 |
| 1313 | 1/2" | 0.5290 | 0.5200 | 0.0800 | 13.44 | 13.21 | 2.03 |
| 1608 | 5/8" | 0.6250 | 0.3170 | 0.0700 | 15.88 | 8.05 | 1.78 |
| 1613 | 5/8" | 0.6250 | 0.5200 | 0.0700 | 15.88 | 13.21 | 1.78 |
| 1908 | 3/4" | 0.7500 | 0.3170 | 0.0600 | 19.05 | 8.05 | 1.52 |
| 1913 | 3/4" | 0.7500 | 0.5200 | 0.0600 | 19.05 | 13.21 | 1.52 |
| 1916 | 3/4" | 0.7500 | 0.6250 | 0.0600 | 19.05 | 15.88 | 1.52 |
| 1919 | 3/4" | 0.7500 | 0.7500 | 0.0600 | 19.05 | 19.05 | 1.52 |
| 1925 | 3/4" | 0.7480 | 1.0000 | 0.0600 | 19.00 | 25.40 | 1.52 |
