Basic Info
Model NO.: Carbide Button Bits
Usage: Well Drilling Machinery, Offshore Oil and Gas Field Exploitation Machinery, Oil and Gas Transportation Machinery, Oil and Gas Processing Machinery, Oil (Gas) Production Machinery
Size: 17.1/2"
Trademark: Tydrillbits
Origin: Shaanxi, China
Type: Petroleum Drilling Tool & Accessory
Certification: ISO, API
Code: Code 117
HS Code: 84314310
Product Description
IADC617 metallic sealed lilin TCI tricone bit for oil and well drilling tricone bits

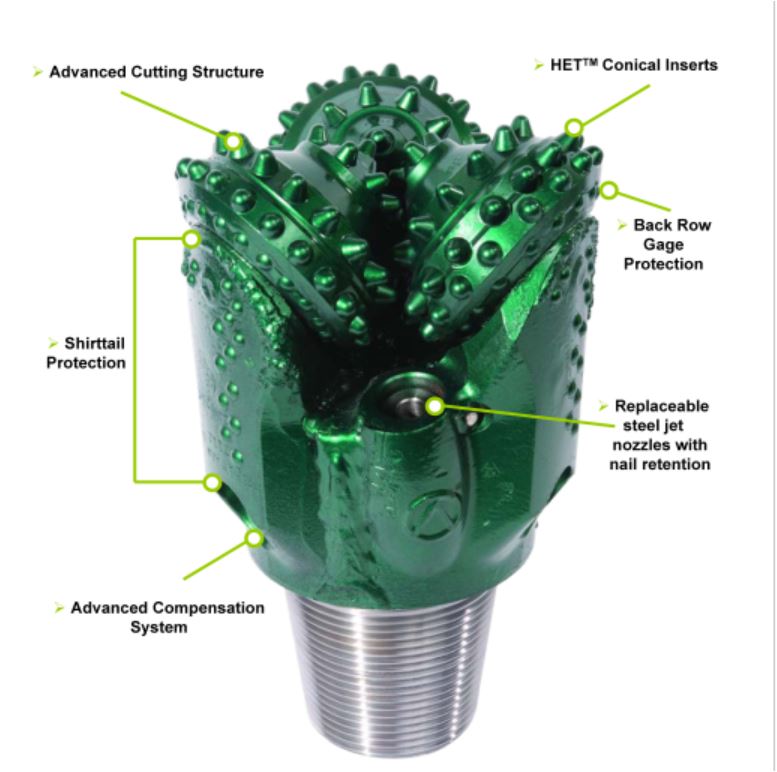

2. Structures
1. Cutting structure this type TCI tricone bits:
The durability of premium tungsten carbide insert is improved with new formulas and new techniques for insert bit.
2. Gauge structure this type TCI tricone bits:
Multiple gauge protection with gauge trimmers on the heel of cone, tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capability and bearing life.
3. Bearing structure of this type TCI tricone bits:
High precision bearing with two thrust faces. Ball lock the cone. Hardfaced head bearing surface. Cone bearing inlaid with friction-reducing alloy and then silver-plated. Abrasion resistance and seizure resistance of the bearing are improved.
4. Seal and Lubrication of this type TCI tricone bits:
Premium O-ring, optimal seal compression and curved seal structure can enhance the seal performance. The pressure compensator system and advanced grease can greatly increase
The lubricating reliability.
5. Product Application of this type TCI tricone bits:
It can receive high WOB in the conventional drilling. It is suitable for various formations by matching cutting structure with different tooth shape, tooth density and tooth exposure height.
| Available sizes: | |
| 60mm, 65mm, 76mm, 93mm, 95mm, 98mm (3 7/8" ), 101.6mm, 114mm, 118mm, 120mm, 127mm(5" ) 130.1mm(5 1/8" ), 133.3mm (5 1/4" ), 139.7mm(5 1/2" ), 142.8mm (5 5/8" ), 149.2mm (5 7/8" ) 152.4mm (6" ), 155.5mm(6 1/8" ), 158.7mm(6 1/4" ), 161.9mm(6 3/8" ), 165.1mm (6 1/2" ) 190.5mm (7 1/2" ), 193.6mm (7 5/8" ), 200.0mm (7 7/8" ) 212.7mm(8 3/8" ), 215.9mm (8 1/2" ), 222.2mm(8 3/4" ) 241.3(9 1/2" ), 244.4(9 5/8" ), 250.8(9 7/8" ) 269.8(10 5/8" ), 295.3(11 5/8" ) 311.1(12 1/4" ), 346.0 (13 5/8" ), 349.2(13 3/4" ) 374.6(14 3/4" ) 381(15" ), 393.7(15 1/2" ), 406.4(16" ) 444.5(17 1/2" ), 508(20" ), 558(22" ), 609.6(24" ) 660.4(26" ) | |
| Available models: | |
| Steel tooth (IADC code) | 111, 121, 131 117, 124, 126, 127, 136, 137 211, 311 216, 217, 227 |
| TCI (IADC code) | 415, 435, 417, 437 515, 525, 535, 545, 517, 527, 537, 547 615, 625, 635, , 617, 627, 637, 737 512, 522, 532, 612, 622, 632, 732 |
