Product description

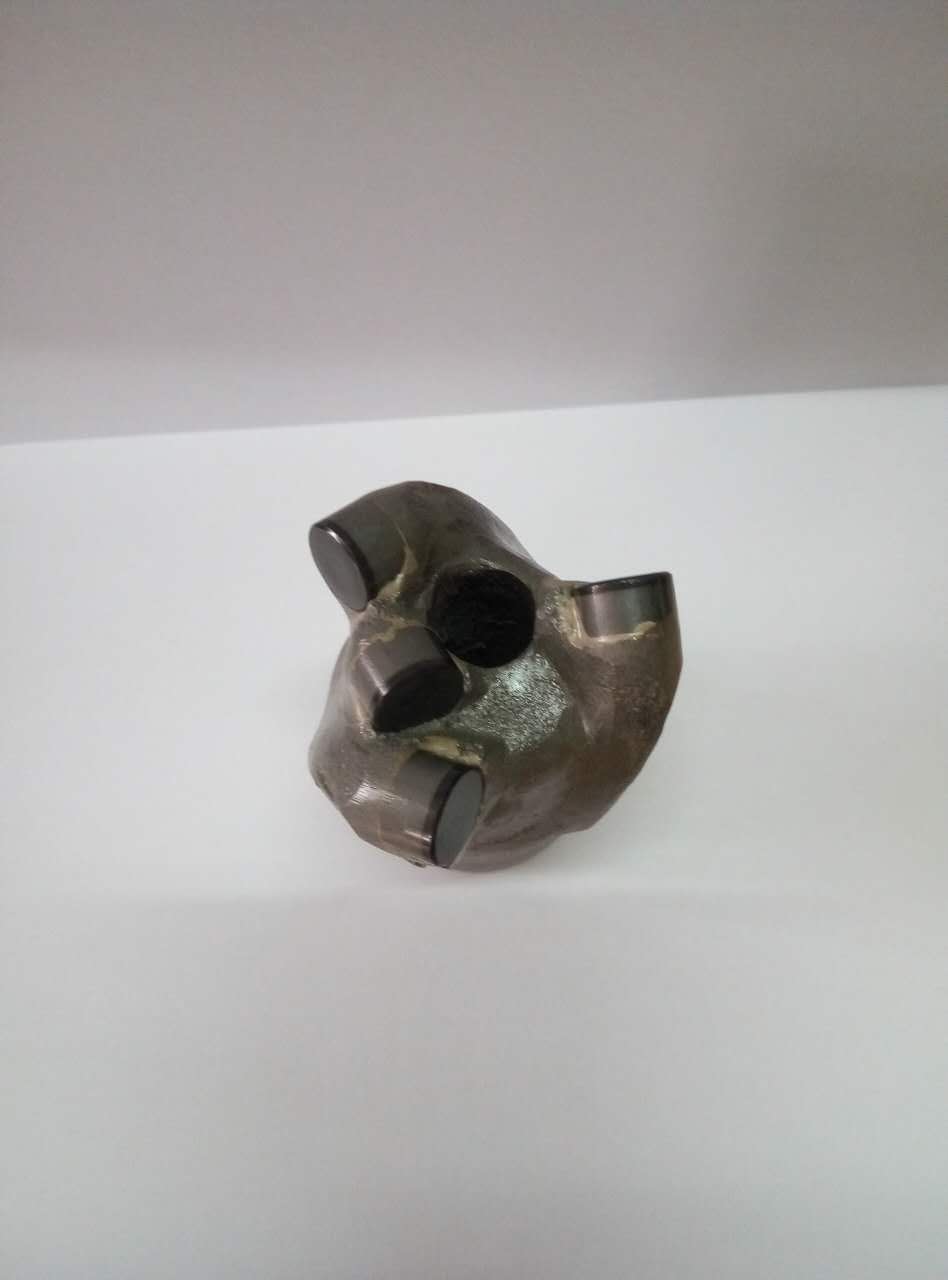

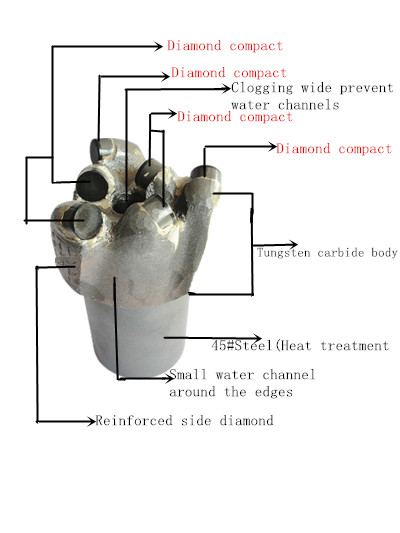

56mm PDC matrix body bit is made by 1308 PDC cutters, tungsten carbide and steel. PDC matrix body bit adopts PDC cutters as the cutting teeth, tungsten carbide as the bit body. Natural diamond as the 56mm matrix bit gauge. Combing the superior characteristics of tungsten carbidke and PDC makes the flat sintered PDC bit widely used in coal mining ang geological drilling, water well drilling and dam construction.
 |  |
Quick details of PDC matrix body bits
| Product name | PDC matrix body bit |
| Material | 1308 PDC cutters and tungsten carbide |
| Process | Forging |
| Size | 56mm 60mm 75mm 94mm 113mm 133mm 153mm |
| Connection thread | AW, BW, HW, API and customized thread |
| Bit type | Non core diamond bit |
| Usage | Hole drilling |
| Application | Coal mining and geological drilling, water well drilling and dam construction |
| HS code | 8207199000 |
56mm PDC matrix body is wear-resistant and high impact toughness, our matrix body PDC bits adopts 100% new raw material to manufacture. so you can replace the PDC cutters on it when the PDC cutters distroyed. 56mm and 60mm is the first choice of dam construction and small hole drilling work.
Packaging and shipping
Packaging for 56mm pdc flat sintered drill bits is in carton box, 20 pieces are in one box;
1-3 days for sample, 1-15 days for batch products;
Samples are shipped by express, batch products are shipped by sea or by air.
